Features

VP was not bolted on. The whole indicator class hierarchy got designed around making it programmable, which is why a 200-line file in Python or Rust can replace the bundled VP entirely. You write the session anchor. You write the value-area math. You decide what counts as a high-volume node, a low-volume node, a shelf, an imbalance. The decorator gives you the tick stream, the price ladder, and the chart canvas; what you put on the chart is whatever your function returns.

The tick-fidelity reference implementation (vp.rs) ships with six parameters (anchor, row size, value area %, HVN and LVN thresholds, proximity ticks) and emits a useful tag set out of the gate: at_poc, inside_value_area, above_vah, below_val, near_hvn, near_lvn. Combine that with vp_orderflow.rs and you also get zone-conditioned dominance tags like bid_dom_at_poc and ask_dom_at_hvn. None of those are sacred. Ship your own tags; the rest of the platform will pick them up.

Most platforms charge extra for tick data and treat it as a performance hazard. Here, the engine and the chart were built for TBBO first; OHLC came later, as a downsample. Trade markers land on the actual fill price. The chart can replay tick-by-tick with a separate stepped bid line and a stepped ask line, with the live spread on the right axis.

Aggregated order flow is exposed to Python strategies on TBBO data at any execution timeframe (bid_vol, ask_vol, volume, spread), plus the helpers re-exported from quant_charts: imbalance(bid, ask), cvd(delta), vwap_band(vwap, atr). A volume pane sits below the chart, colored by close-vs-open, and falls back to tick count when a TBBO file has no volume column.

A Rust NAPI module sits behind everything that runs a strategy. Single-day backtests come back in a few milliseconds, multi-day sweeps in seconds. Trade timestamps stay in milliseconds end-to-end and never snap to a bar boundary. Slippage applies at the tick. Trading-day windows are computed in Eastern Time because UTC clips a Monday futures session in half (a Monday session starts Sunday 6pm ET); we tried it the other way first.

Walk-forward splits, optimizer sweeps, and tag-filtered re-runs reuse the same engine path. An in-sample fill and an out-of-sample fill go through identical microstructure. C++ strategies as a third execution language are on the roadmap.

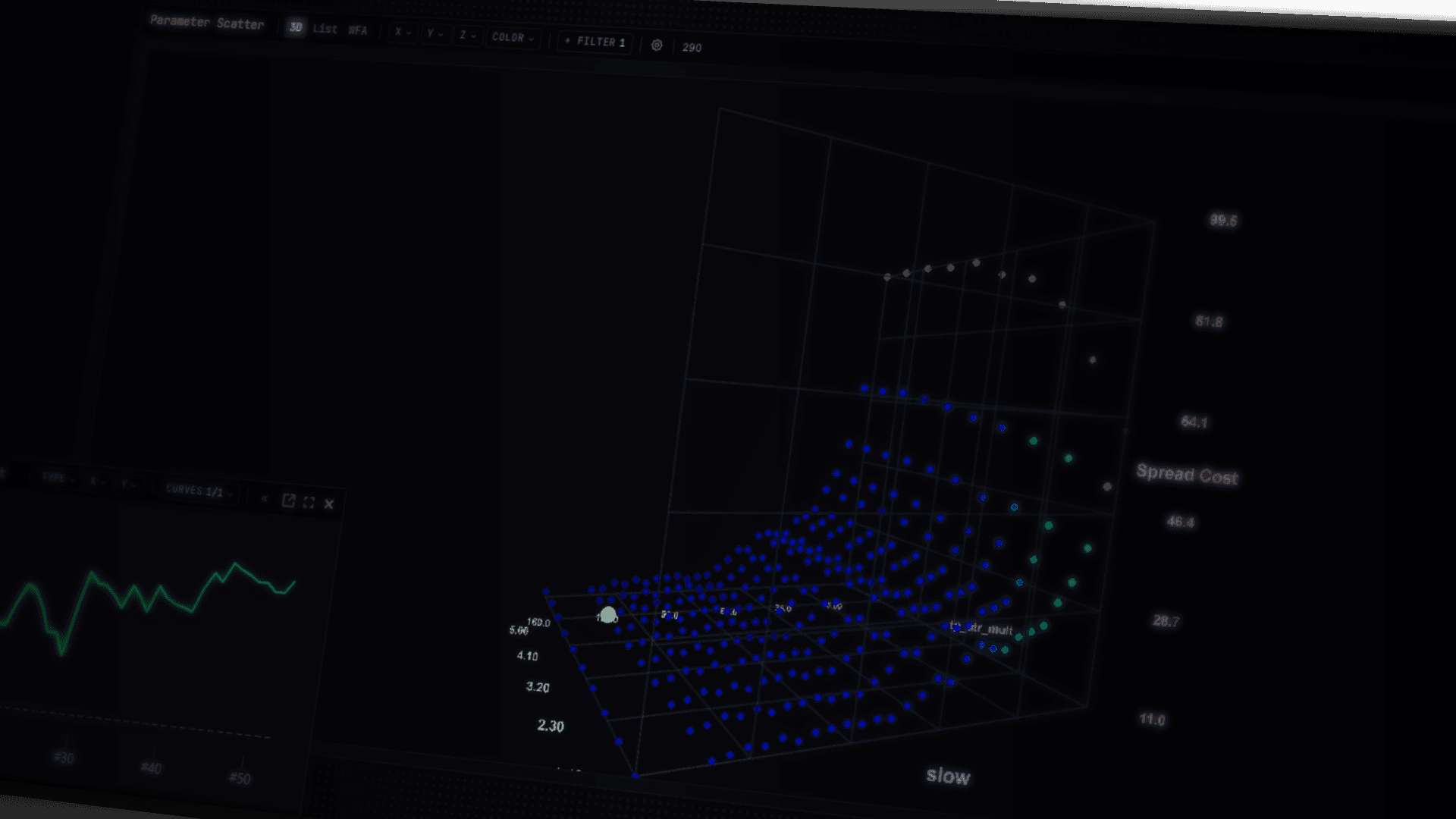

Cross-product sweeps across whatever parameter axes you define. The result renders as a 3D heatmap. Click any cell to load that combination's full equity curve and trade list inline. Tens of thousands of combinations finish on a typical desktop run; heavier sweeps will move to rented server-side compute when that lands.

Robustness scoring runs across the whole surface so you can pick a parameter neighborhood instead of the single peak that curve-fits hardest. Sweep presets save and re-run on new data. Per-tag stats survive optimization re-runs and clear-button cycles, which sounds like a small thing until you spend an afternoon losing them.

Configurable in-sample / out-of-sample splits, anchored or rolling, with the window length and step size you set. The panel shows per-window equity curves, an aggregate score, and an overfit indicator that flags strategies that work in IS and die in OOS. The engine caches signal bundles so you can re-run with different split parameters in a few seconds without re-executing the strategy code itself. Switching the data file or the analyzer mode drops the bundles automatically; nothing stale survives the switch.

Other backtesters (NinjaTrader's tag-zone filter, for example) filter the trade list after the fact and call it cascade-correct. Here, when you flip a tag dropdown after a run, the engine re-runs from scratch with a trading mask built from your pre-computed tag arrays. The single-position-at-a-time constraint, the SL/TP cascade, and the order-of-fills carry through the filter the same way they did on the original run.

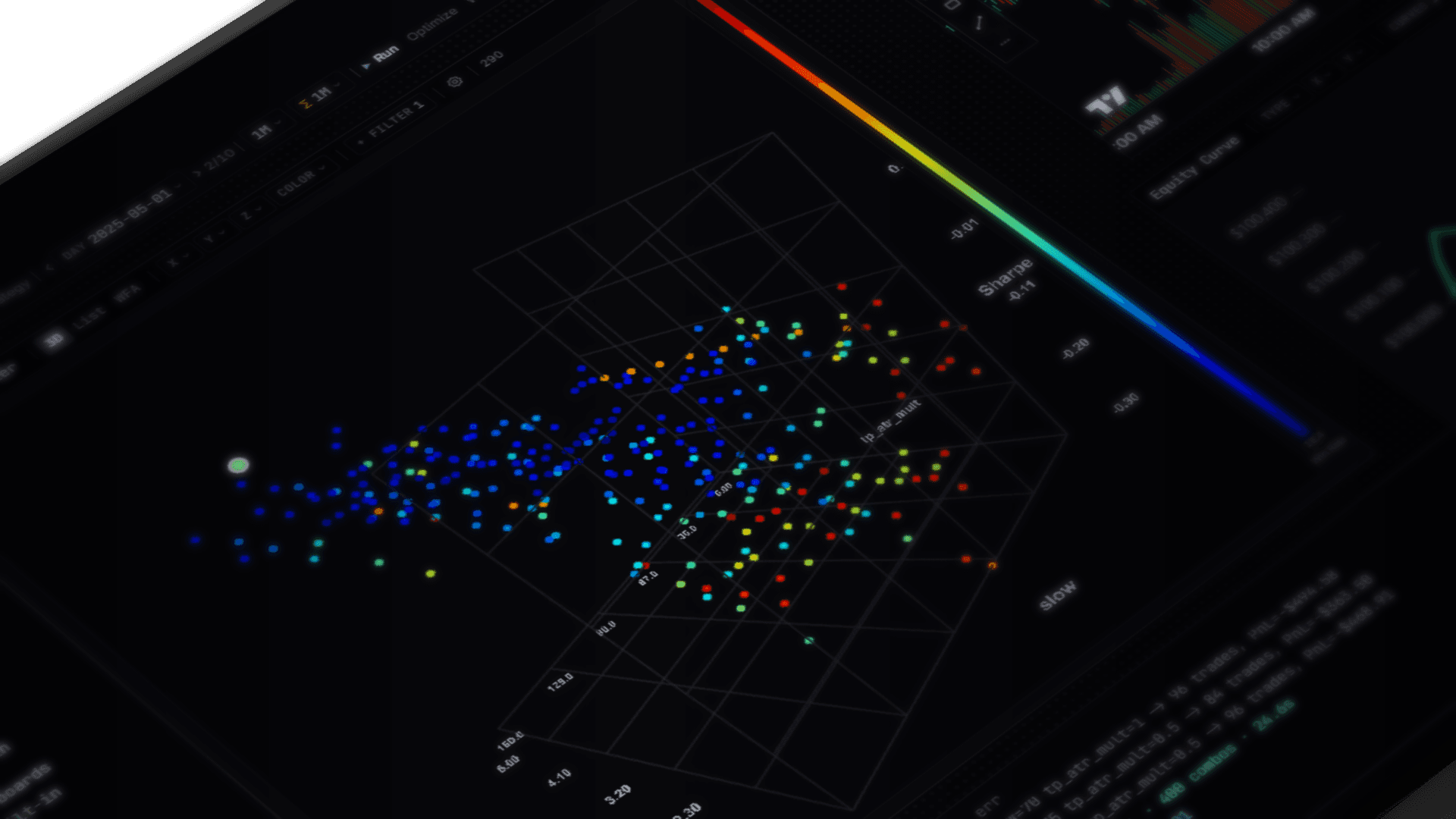

A tag is anything you compute. A regime label from a classifier. An order-flow dominance flag. A time-of-day bucket. The output of an external model. Compute them once inside the strategy run; the engine keeps the arrays. The MAE/MFE 3D scatter brushes against the same set, so you can drag-select trades on the scatter and watch the equity curve repaint underneath.

Strategies and indicators can fire trigger events mid-trade. Tighten a stop on a regime flip. Move SL to breakeven when your indicator says the move has paid for itself. Trail a TP per-tick. The bundled dynamic_sl.py shows the trigger-driven SL path; trail_sltp.py shows the manual per-tick variant; regime.py registers a set_sl_breakeven trigger on regime change.

The analyzer measures every trigger event post-hoc. The built-in analysis.ipynb notebook walks through tag analysis, trigger-impact attribution, filtering, and group comparison in one workflow, so you can see how each trigger event actually shifted your edge instead of guessing.

A strategy is a Python class with init and on_bar or on_tick. Switch the file extension to .rs and the same idea is a Rust struct that compiles per-edit. Indicators come in two flavors, overlay (drawn on the candles) and subpane (drawn underneath), with full access to canvas drawing primitives. Use NumPy, pandas, scikit-learn, polars, or any package you have installed. The Monaco editor speaks the qc.ta namespace fluently: signature help, completions, parameter dropdowns, per-instance timeframe override.

A small bonus: the editor has a TradingView script converter that takes a Pine snippet and emits a Quant Charts indicator stub. Not every Pine feature maps cleanly, but the boring translation work is done.

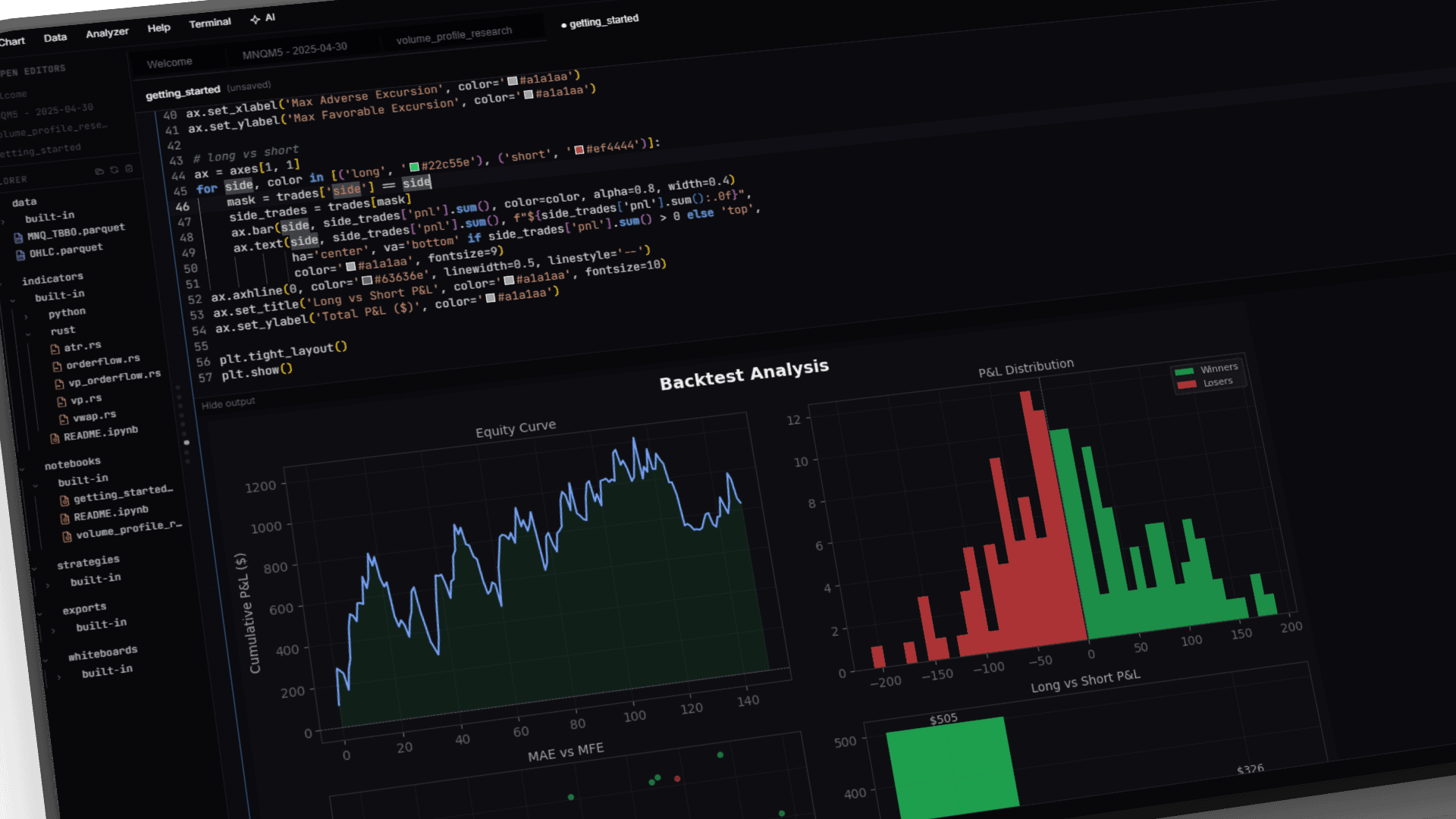

A real Jupyter kernel runs inside the app. Faster cell execution, smarter restart, inline matplotlib without the auto-save races. The qc.runner API is identical to what the Analyzer tab uses, so a notebook that loops over a year of trading days and runs Monte Carlo on the result is two calls and a list comprehension. Markdown cells render LaTeX, including matrices, integrals, and the rest of the Greek alphabet (yes, we checked).

Three notebooks ship in the workspace: getting_started.ipynb (decorators, data, plotting, backtesting, optimization), analysis.ipynb (tag analysis, trigger impact, filtering, group comparison), and multi_day.ipynb (multi-day backtests, Monte Carlo, parameter sweeps for both .py and .rs strategies).

Claude Opus 4.7 (1M context) and Gemini 2.5 Pro run inside the app with read-write access to your workspace. Authoring strategies, editing indicators, running backtests, querying parquet, refactoring across files. Every diff is presented inline before it lands; no surprise rewrites. Bring your own Anthropic or Google API key. The per-message cost shows up right next to the chat so you know what a long thinking turn actually costs.

The agent loop is fast. First-message context dropped from around 12k tokens to a few hundred in the v1.0.7 rewrite, tool calls stream, and prompt cache hits are routinely above 80%. The chat panel feels like a real editor companion, not a chatbot wedged into a pane.

The same agent surface is also reachable from outside the app. A built-in MCP (Model Context Protocol) server lets Claude Desktop, Cursor, Zed, or your own MCP client talk to the running Quant Charts process. Plug in once. Your agent can read your strategy code, search the workspace, query a parquet file, run a single-day backtest with live progress, validate code, and edit notebook cells.

18 tools cover file ops, workspace search, parquet query, single-day backtests, and notebook editing. 3 resources expose the workspace tree, the last backtest summary, and the app version. Your Claude Pro or Max plan pays for the tool calls, so no separate API budget. There is a kill switch and a config-export button under Account > MCP server.

Pop the analyzer into its own window. Pop the chart into a second one. The state syncs across windows automatically: selected day, parameter form, tag filters, the lot. Tag-filter and exec-options reruns serialize cleanly across windows so two popouts cannot fight over the same tick cache. Switching the data file or the analyzer mode (strategy vs indicator) drops preserved signal bundles, so the next run starts fresh on every window without you remembering to clear anything.

Connect a GitHub account from inside the app via OAuth Device Flow (paste a code, approve in the browser, done). After that, push, pull, branch, and remote-URL handling all live in the source-control panel. Your strategies version like normal code, because they are normal code.

Drop a parquet file into the workspace; DuckDB indexes it. TBBO ticks, OHLC bars, or any tabular data you can fit into parquet. The CSV importer is the surprising one: it handles 12-hour timestamps with AM/PM suffixes, European decimals (3.575,75 becomes 3575.75), mixed thousands separators, and several other formats vendors invent for reasons. The parquet preview is type-aware and color-codes numeric vs categorical columns.

Direct hookups for live Tradovate, live Databento, and MBP-10 (full L2 order book) ingest are on the roadmap.

The shell is FlexLayout, the same VS Code-style dockable tab system you would expect; the rest of the surfaces sit inside. The Explorer groups files by folder and panel, with fast context menus. The Help tab carries the docs you actually need without leaving the app. The Terminal has an audio oscilloscope (no, really; it visualizes whatever sound device you point it at, off by default) and proper code-output styling. The bottom status bar shows live py / np / rs / qc / win / gpu health at a glance, so when something goes sideways you know which subsystem to blame within a second.

Drawing tools clamp to the crosshair correctly, support labels, and survive panel rearrangement. A per-strategy timeframe pill sits in the chart top bar, so switching the execution timeframe on a strategy is one click instead of three menus deep.
